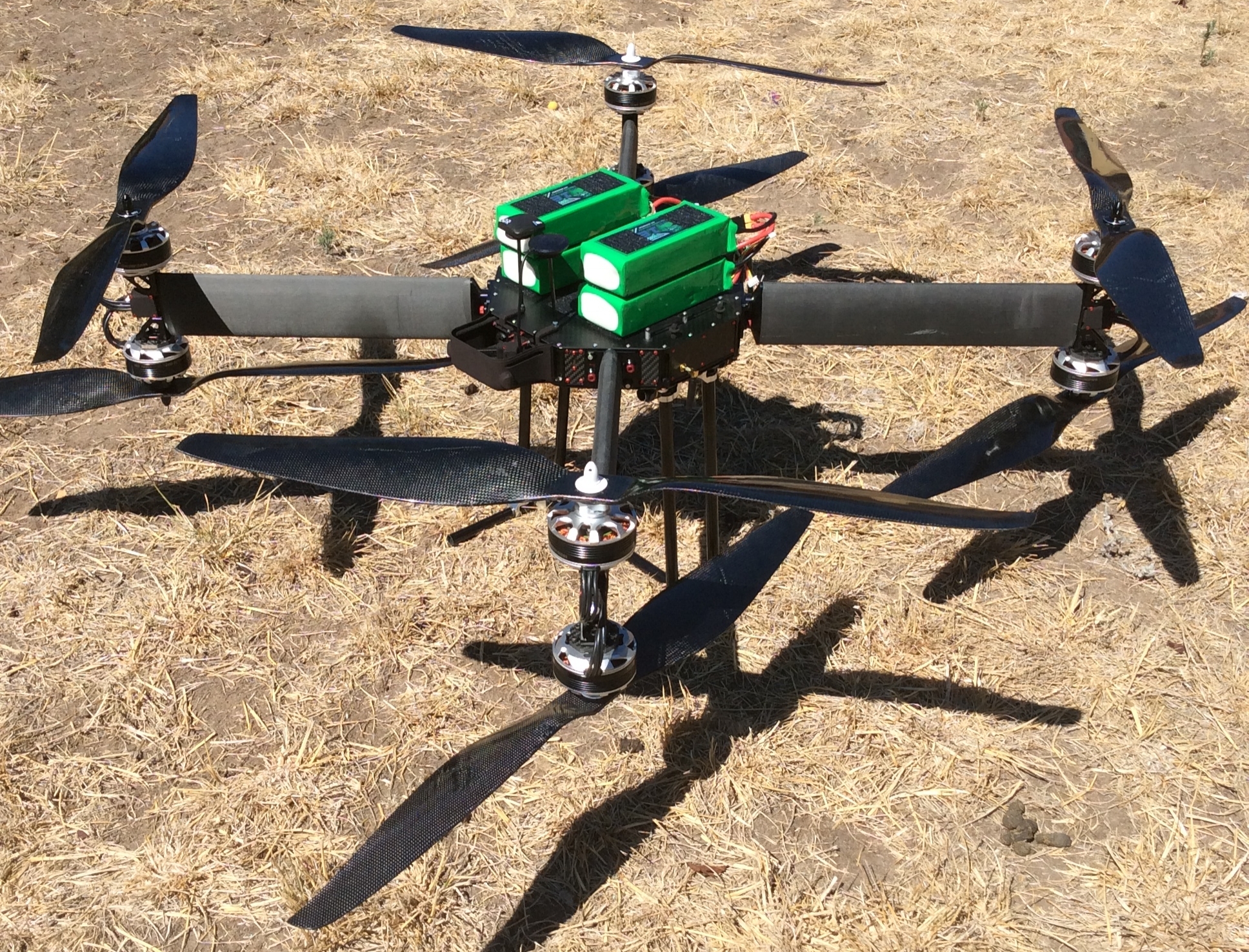

Vector R30

RMD Systems is proud to introduce the Vector R30. The R30 is a multirotor UAV with unmatched flight time and payload capabilities. The R30 was designed from the ground up to be the best multirotor UAV on the market, period. The machined aluminum monocoque construction allows the R30 to survive harsh environments and rough handling that would disable other UAV platforms. Rain, dust, dirt and snow are no problem for this machine!  Specially designed airfoil shape booms reduce vibration and dramatically increase flight efficiency.  Multiple redundancies in the hardware and software allow for the end user to focus on the mission, not the vehicle. Potential uses for the R30 include:

  • Search and rescue operations
  • Surveillance and security
  • Structural inspection
  • Infrastructure inspection
  • Aerial surveying
  • Precision agriculture
  • Crop spraying



The Vector R30 can be configured with a variety of payloads to meet your specific needs. We offer several pre-configured packages that will cover most clients needs. Payload packages include:

  • SAR/ Inspection package , includes standard R30 package plus the following:
    • camera controller, allows operator control over camera direction, zoom level, and switching between visible and IR cameras
    • Real time HD video downlink, 1.1Km range
    • Gyro Stabilized EO/IR gimbal, 6x optical zoom, 640x512 thermal with 2x optical zoom
    • Allows for day or night imaging, thermal camera can detect heat from vehicles, persons, animals, infrastructure, etc
    • Optical zoom combined with gyro stabilization allows for reading of license plates from over 500 feet away
  • Agriculture Package , includes standard R30 package plus the following:
    • RMD small UAV sprayer tank
    • Quick disconnect mount for R30
    • Fill and drain station
    • Hoses, fittings, and pressure bottle ( High pressure air and 12gram CO2 adapter standard)
    • Pencil nozzle for targeted sprays
    • sprayer boom system with interchangeable nozzles
    • HD camera and video downlink for real-time spray viewing (optional)
  • Standard R30 package
    • Serialized and flight tested R30 airframe
    • 1 set of flight batteries (additional flight batteries may be purchased separately)
    • FPV (first person view) camera and transmitter
    • FPV monitor/ base station
    • Groundstation telemetry radio (for autonomous missions)
    • RC radio (for manual control)
    • Battery quick charger
    • Instruction manual
    • Flight logbook
Vector R30: Built for demanding environments

Vector R30: Built for demanding environments

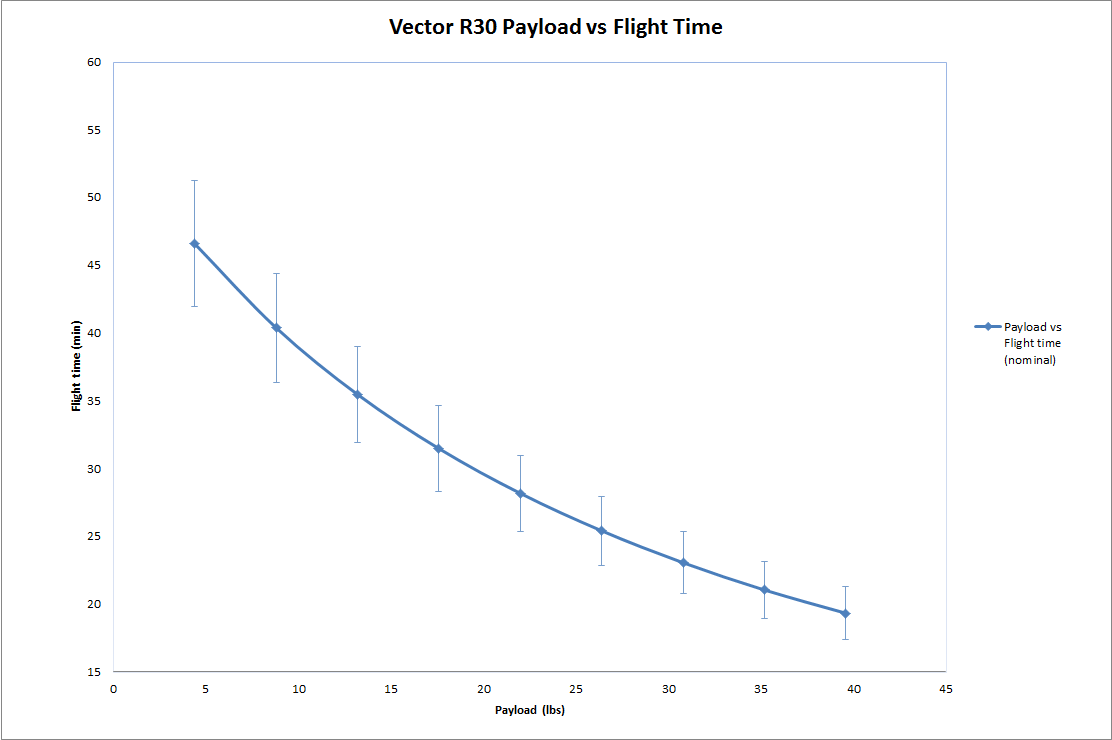

  • 55 minute flight time (no payload)

  • 45 minute flight time (5lb payload)

  • Rainproof and dustproof (IP65)

  • 41 pounds takeoff weight (no payload)

  • 30" diameter propellers (x8)

  • Specially designed airfoil shape booms

  • 80lbs max take off weight

  • 26lb recommended max payload

  • Dual redundant GPS, IMU, and power system

  • 3 mile range (5 Km)

  • individually serialized

  • Anti-collision lights (compliant with FAA and maritime standards)

  • Multiple flight modes (automated waypoint mission, groundstation flight, GPS guided manual mode and more)

  • Multiple failsafes (low battery, return to launch, geofence, GPS glitch protection and more)
